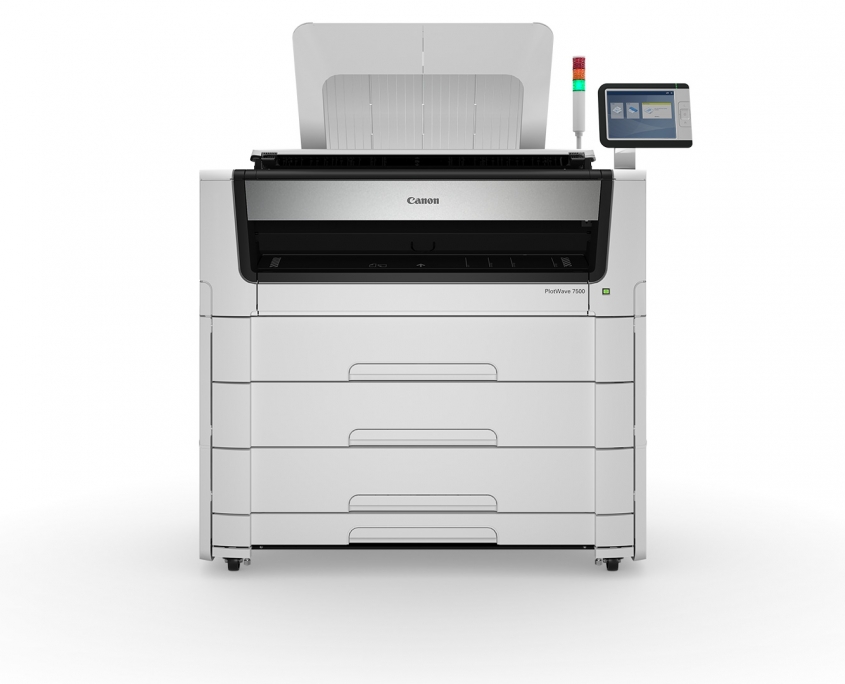

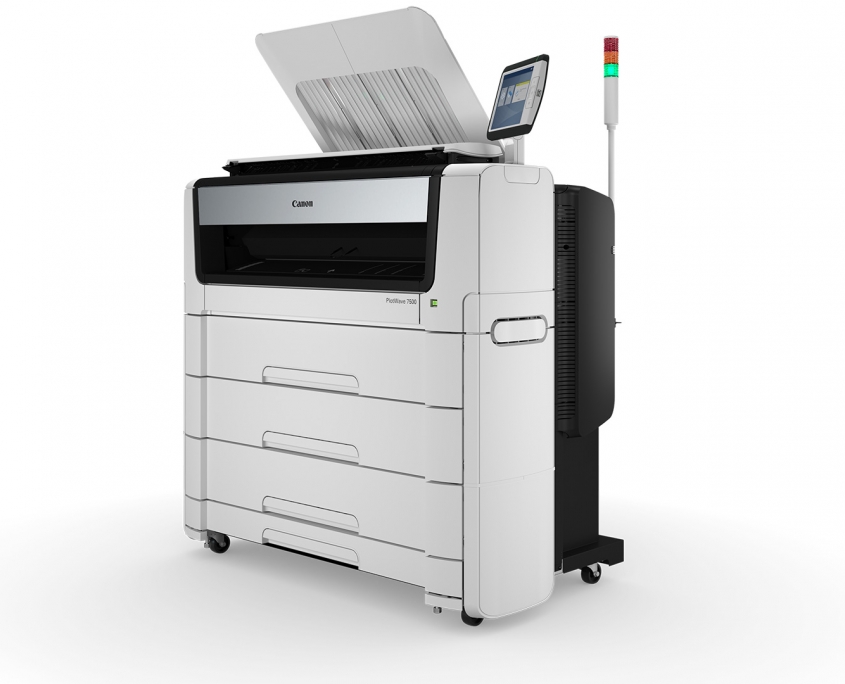

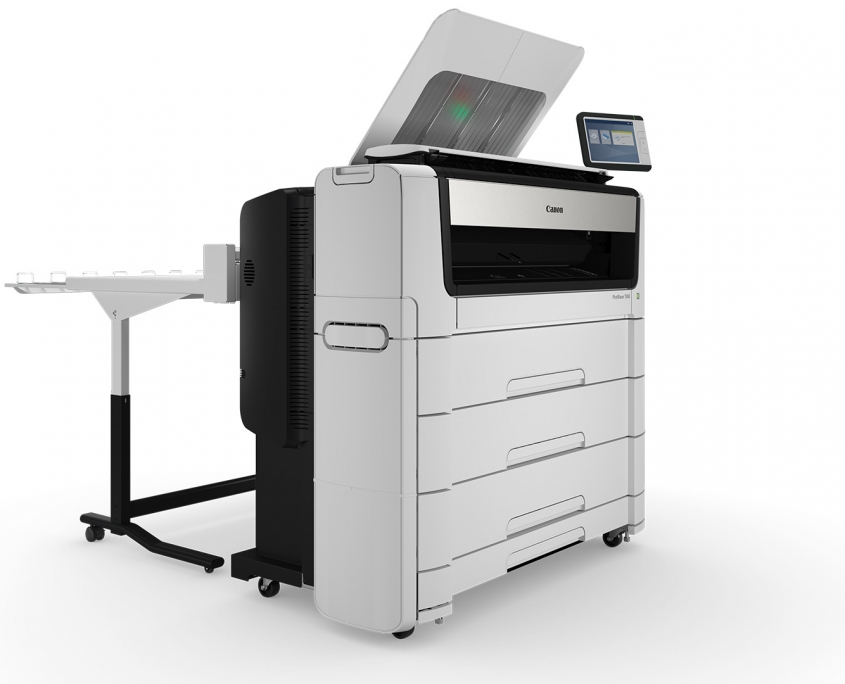

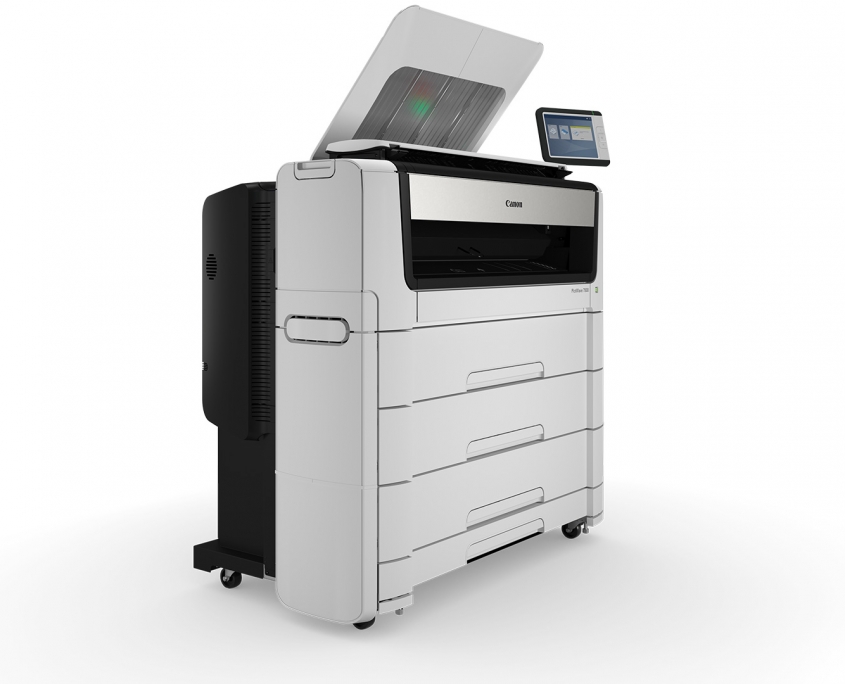

Canon PlotWave 7500

PlotWave seria 7500

Imprimantă monocromă productivă de format mare, cu panou de utilizator multitouch ClearConnect.

Tava de livrare de sus integrată. Până la 100 de coli E-size / A0.

Aspect și simț constant din orice unghi al fluxului de lucru, standard, inclusiv Smart Inbox, SmartAccess și Live Preview.

Editori: Publisher Mobile pentru iOS și Android, Publisher Express, Publisher Select 3 pentru Microsoft Windows.

1 sticlă de toner 500 g, 1 sticlă dezvoltator 1.750 g, 1 rolă 36 "20 lb. hârtie de legătură (75 g / m2).

Ajutați la siguranța imprimantei împotriva mișcării sau înclinării în timpul unui cutremur. Această prevedere permite utilizatorului să asigure imprimanta la o conexiune robustă a clădirii.

Scanner Express with Image Logic technology, integrated scanner positioned on top of the printer to save office space.

Capacity: 250 pages; Sizes: A/A4 size–C/A2 size

Provides feedback on printer status from a distance

Stacker Select, 400-sheet capacity

Add roll media capacity from 4- to 6-roll system

For secure environments, hard disk can easily be removed from the printer system to help secure data integrity.

Electrophotography (LED) with Organic photoconductor (OPC).
Radiant Fusing Technology with instant warm-up.
Clean toner refill system.
Virtually no ozone emission.

Instant warm-up, contactless fusing, low power consumption (heating on-demand).

Black toner: 1,000 grams per toner kit (500 grams/ bottle).

10-D/A1-sizes2 per minute 5-E/A0 sizes3 per minute

<40 seconds

<40 seconds

600 x 1200 dpi

0.00236" (0.06 mm)

< 0.3%

61.6" x 31.7" x 66.8" (1,563 x 803 x 1,695 mm) (Height of 66.8" includes Top Delivery Tray)

58" x 34" x 50" (1,470 x 850 x 1,280 mm)

631 lb. (286 kg)

739 lb. (335 kg)

4 or 6 rolls; manual feed of cutsheet media. Cutsheet tray.

Cutter included in the drawer for fast and easy roll media switching.

6 rolls (650' L x 36" W): 11,700 sq. ft. If 4 rolls: 7,800 sq. ft.

ARCH: B, C, D, E, E1, 30", 21", 15"
ANSI: B, C, D, E
ISO: A3, A2, A1, A0, B1, B2, B1_700, B2_700

Short-edge feed (portrait): A3, B4, A, B, A+, B+, Carto B4, 230 x 310 mm, 310 x 440 mm
Long-edge feed (landscape): A3, A2, B4, B3, B, C, B+, C+, Carto B4, Carto B3, 15" x 21", 310 x 440 mm, 440 x 594 mm

Bond: 16–28 lb. (60–110g/m2). Film: 3.5 mil.

Up to 650' (200 m)

11"–36" (11",12",15",17",18",21",22",24",30",34",36") (279–914mm)

11" (279 mm)

577' (176 m)

Paper: Engineering Bond, Vellum, Recycled Bond, Tinted Bond Xtreme #27 Bond
Film: Polyester 3.5 mil

Paper: Engineering Bond, Recycled Bond, Tinted Bond Xtreme #27 Bond
Automatic width detection.

Automatic roll media selection for optimized productivity and media saving, based on drawing size, media type, roll width, and finishing.
Automatic roll switching when end of roll is reached.

ClearConnect multitouch user panel

11.8" x 8.7" x 1.6" (300 x 220 x 40 mm), 10.4" (diag.) color LCD

800 x 600 pixels (SVGA)

Projective capacitive touch

3 hard buttons: [Wake-up], [Stop, interrupt, abort], [Home]
Multitouch functions: tap, double tap, pinch, 2-finger pinch, swipe, flick, and spread.

Distinctive user interface with intuitive navigation and clearly defined levels of operation. View optimization: Tilt ClearConnect (-4 to +45 degrees) and swivel (-45 to +180 degrees).

Status light (red, orange, green).
USB 2.0 interface with indication light.
Switch instantly between 2 languages, select from 21 languages.

High performance POWERsync controller with Windows 10 LTSC IoT Enterprise, 64-bit

Dual Core, Dual Thread Celeron® G4900 at 3.10GHz

4 GB DDR4

Intel HD Graphics, 1GHz

500 GB, 7200 rpm (standard)

TPM2.0

Windows 7 / Windows 7 64 bits / Windows 8.1 / Windows 8.1 64 bits / Windows 10 / Windows 10 64 bits / Windows Server 2008 R2 64 bits / Windows Server 2012 64 bits / Windows Server 2012 R2 64 bits/Mac OS 10.10 / Mac OS 10.11 / Mac OS 10.12 (PostScript 3 driver support only for Mac OS)

2 x Ethernet 100 Mbits/s, 1Gbit/s
TCP/IP: DHCP, IPv4, IPv6, HTTPS
Discovery: APIPA, WS-Discovery, SNMPv3

TIFF, JPEG, HPGL, HPGL2, DWF, C4, Calcomp 906/907/951, CALS, NIRS, NIFF, PS/PDF (optional)

LPR, FTP, WebDav, WSD print
FTP
Pull from SMB, FTP
Pull from cloud (retrieve from WebDAV-based clouds)
HTTP/HTTPS (used by Publisher Express)
Print from home folder via access management

SNMPv3, Wave interface, WS-Discovery

E-shredding, IPSec, IP filtering/Access Control Lists, HTTPS, SNMPv3, audit logging, AES256 Disk Encryption, 802.1x Authentication, network protocol enable/disable, LDAP integration, Active Directory Integration, User authentication on local ClearConnect user panel and via Express WebTools (LDAP/ Active Directory credentials, smart card) for scan/copy/print. Configure HTTPS Certificates. Allow disabling TLS1.0 and 1.1 protocols (no response to network scan) and enable TLS 1.2 with stronger cipher. Embedded FIPS 140-2 Certified Trusted Platform Module (TPM) and BitLocker 256 AES hard disk encryption, hard disk wipe, Configurable CA certificate, Disable Network Ports and Protocols, Security Event Logging, Single Sign-on. Options: Removable hard disk, McAfee antivirus, McAfee Application control (whitelisting).

Provide help secure access to device by users keying in password on the ClearConnect multitouch operator panel or get access with a Smart Card by connecting a card reader (including contactless). Authorization is managed by using Active Directory.

Unlimited user and/or Administrator authenticated cloud support via WebDAV and/or third party provider: e.g. Microsoft SharePoint, Dropbox, Box.com, box.net, Google Drive, Microsoft OneDrive, Amazon Cloud Drive, Cloudsafe, MyDisk. The cloud user authentication can either be preconfigured by the administrator or done by the user at the time of accessing the specific cloud.

Scaling (scale-to-fit page, reduce when image too large to avoid clipping or to custom factor, scale page size to standard size), Rotation, Shift (automatic or user defined), Adding/removing trailing/leading edge, Mirror, Black intensity in poster mode, Print optimization (standard, lines/text, poster). Color Highlight and Dark Original. Area to erase (area of interest).

Integrated Contact Image Sensor (CIS) Color scanner with Image Logic technology

600 x 600 dpi (Selectable 100, 200, 300, 400, 600 dpi)

Up to 49.8 ft./min. (15.2 m/min.) Black-and-white scanning
Up to 33.1 ft./min. (10.1 m/min.) Copying
Up to 16.4 ft./min. (5.0 m/min.) Color scanning

TIFF, PDF, PDF/A, JPEG, CALS, multipage PDF, multipage PDF/A, and multipage TIFF

Extensive number of scan templates to standardize common scan settings and destinations

FTP, SMB, scan to cloud (push to WebDAV-based clouds)

Local USB flash drive, FTP, SMB, Smart Inbox on Controller, Optional Local Home folder (LDAP), mobile device via Mobile WebTools, WebDAV clouds

Preset naming with auto numbering for productive scanning or file name on the ClearConnect user panel

8.2"–36" (208–914 mm), automatic width detection

8.2"–52.5" (208 mm–16 m), auto length detection

Maximum 0.03" (0.8 mm) nonrigid documents

1:1, Scale to media size, Scale to standard format. Custom: 10–1,000%

Lines & Text standard, Folded Lines & Text, Lines & Text draft, Dark Original, Colored Original, Photo, Blueprint, Map, Artwork

43" x 12" x 5.5" (1,097 x 308 x 140 mm)

55 lb. (25 kg)

Standby and sleep: less than 26 dB; Print mode: less than 52 dB

< 0.005 mg/m3 , <0.002365 PPM (0.25% of permitted limit value)

Ready: 66 W; Active: 1.7 kW

100–240 V; 50/60Hz

Sleep mode: <2 W
Ready mode: 66 W
Active mode: 1.7 kW

CE, TUV GS, CETECOM, ENERGY STAR 3.0, FEMP, Rohs, CCC, VCCI TüV GS, c-UL-US, CB, RCM, EPEAT, EAC, FCC Class A, VCCI Class A

Printer: made of steel or highly recyclable plastics: up to 95% of the engine can either be upcycled or recycled. Remaining 5% are nontoxic waste.
Prints: very good deinkability when recycled.
Toner: bottles made of highly recyclable HDPE (High Density Polyethylene).

The ClearConnect software suite consists of a variety of applications with the same user interface. Create, retrieve, and/or send jobs from drivers (Driver select for Microsoft Windows, Driver Express for Adobe PostScript 3 for Microsoft Windows or Apple OS), external locations (SMB, FTP, LPR, WebDAV), Mobile devices via Express WebTools and Publisher Mobile, USB flash drive, Cloud services, and optional Home folder(LDAP).
1-click printing from USB, 1-click printing from previous sent jobs via Print SmartAccess on ClearConnect user panel. The Smart Inbox on the ClearConnect user panel enables the job preview: swipe between your jobs for print selection and preview. Pan to view the image in detail (zoom).
With the template-oriented Publisher Select 3 submitting multiple files in batches is supported. Print multiple times and sort by page or set. Media saving automatically rotates print files to optimize media usage.

Personalized Smart Inbox: History, Manage Queue, Manage History, Express WebTools, Secured Controller Access

Spool memory provides a queuing system for print and copy jobs. This enables multiple users to send print and copy jobs at the same time. Customize priority settings for copy and print jobs in the queue. The Job Queue overview gives access to job names, owners, and status including required media. Jobs can be paused, deleted, and placed on top of the queue.

View the counter history at preferred time periods, per job or total overview in Express WebTools. View, create, edit, and delete stamp templates.
Optional uniFLOW support, log in with your personal uniFLOW Queue on the ClearConnect User interface. Supports manual authentication, card readers, and contactless card readers.

Express WebTools provide administrators the tools to manage the device remotely via the web: e.g. check printer status; define default settings for print, copy, and scan; define access; security; accounting; remote shutdown; software update and restart; power on/off timer; system behavior; queue management; license management; view, create, edit, and delete stamp templates; etc.

Scanați direct în iPF 600/700/800 / TX- 2000/3000/4000/5200/5300/5400 series prin Publisher Select 3 (hotfolder)

Stivuitor productiv integrat cu capacitate mare și senzor plin cu tavă

400 de pagini
